Forensics of the Wire: Decoding the RDMA Over Ethernet Goodput Gap
The Cost of Abstraction.
Networking is often simplified as "Bandwidth." In reality, what matters to an AI collective operation (like an All-Reduce) is **Goodput**: the actual number of useful payload bits delivered per second.
RoCE v2 achieves its "Converged" nature by wrapping InfiniBand transport messages in a standard UDP/IP/Ethernet envelope. While this allows RDMA to traverse commodity switches and routers, it introduces a permanent "Metadata Tax." At the staggering speeds of **800G per port**, the margin for error in efficiency is razor-thin.

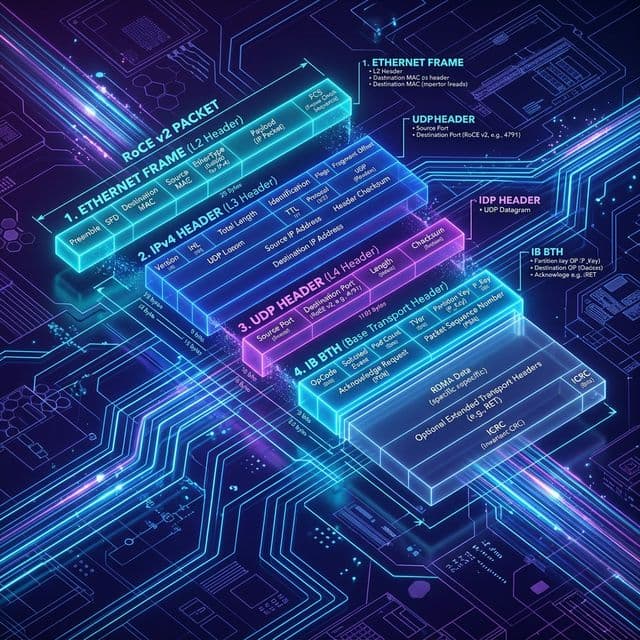

II. Forensic Bit-by-Bit Header Decomposition
To optimize a network at 800Gbps, you must stop thinking of packets and start thinking of **bits on the clock**. Every byte of overhead consumes 1.25 nanoseconds of wire-time on a 400G link, halved on an 800G link.
| Field | Size (Bytes) | Function & Forensic Impact |
|---|---|---|
| Inter-Frame Gap (IFG) | 12B | The "Silence" between packets. At 800G, this 12B gap is mandatory, effectively consuming 0.12ns of every packet cycle regardless of payload. |
| Preamble + SFD | 8B | Bit synchronization. Stripped by switches, but occupies physical bandwidth on every fiber link. |
| Ethernet L2 Macro | 14B | MAC DA/SA + EtherType. Static overhead. If VLAN tagging (802.1Q) is used, add 4B. |
| IPv4 Header | 20B | Source/Dest IPs. Used for L3 routing. Choosing IPv6 here costs an extra **20B**, a 100% tax increase on the network layer. |
| UDP Protocol | 8B | Critical for Entropy. The Source Port is used as a hash key for ECMP balancing. |
| IB BTH (Base Transport) | 12B | The core RDMA logic. Contains the QP (Queue Pair) and PSN (Packet Sequence Number). |
| ICRC + FCS | 8B | Data integrity footers. ICRC is invariant, ensuring the RDMA payload didn't flip a bit despite header modifications. |
| Total Tax | 82B* | *Total physical occupancy including IFG/Preamble.* |
III. PCIe TLP Fragmentation: The Hidden Bottleneck
Header overhead isn't just a network problem—it's a **PCIe Bus alignment disaster**. Inside the server, data moves across the PCIe Gen5/Gen6 bus in **Transaction Layer Packets (TLPs)**, typically with a Maximum Payload Size (MPS) of 256 bytes.
The "Stuttering" Bus Effect
When a NIC receives a 1500-byte RoCE packet, it strips the 74-byte header and attempts to write the payload to GPU memory. Because 1426 (Payload) is not a multiple of 256 (PCIe TLP), the final write is fragmented. This causes the PCIe root complex to issue "Partial Writes," which significantly increases overhead on the memory controller.
Bus spend cycles moving metadata and handling unaligned boundaries.
Payload length aligns perfectly with TLP bursts, allowing full "streaming" writes to VRAM.
IV. The ACK Death Spiral
Reliable RDMA requires Acknowledgment (ACK) packets. In an 800G fabric, every data packet generates a corresponding ACK from the receiver.
Small Message Performance Collapse
In AI training, many messages are small (e.g., 64-byte metadata updates). For a 64B payload, the 74B header means your efficiency is **46%**. You are literally sending more metadata than data. This is why "Collective Offloading" (SHARP) is vital—it processes these small messages in the switch hardware rather than flooding the fabric with high-overhead packets.
800G: The Critical Threshhold
PPS Saturation
At 800G with MTU 1500, a NIC must process over **66 Million packets per second**. Even modern DPUs struggle with this interrupt frequency, leading to "Tail Latency" spikes that stall the training job.
PCIe TLP Alignment
RoCE headers are not 64-byte aligned. When the NIC DMA's data to the GPU memory, it must often split writes across Transaction Layer Packet (TLP) boundaries, wasting up to 15% of PCIe bandwidth.
ACK Overload
Smaller data packets generate more ACKs (Acknowledge packets). These ACKs occupy the same 800G lanes as the data. Reducing packet count via Jumbo Frames reduces ACK density by 6x.
The MTU 9000 Mandate
In many enterprise networks, Jumbo Frames (MTU 9000) are treated as a "nice to have." In an AI cluster, they are a **hard requirement**.
Successful Blackwell clusters (2026) use a "Uniform MTU" policy: all NICs, Leaf switches, and Spines are locked to MTU 9216 (9000 payload + L2 headers) at the initial BIOS/Config stage.
Comparative Goodput at 800G
V. The Goodput Matrix: IPv4 vs. IPv6 vs. UEC
| Protocol Stack | Header Size | Efficiency (1500 MTU) | Max Goodput (800G) |
|---|---|---|---|
| RoCE v2 (IPv4) | 74 Bytes | 95.07% | ~712 Gbps |
| RoCE v2 (IPv6) | 94 Bytes | 93.73% | ~684 Gbps |
| InfiniBand NDR | 36 Bytes | 97.60% | ~781 Gbps |
| Ultra Ethernet (UEC) | 60 Bytes* | 96.00% | Flexible/Optimized |
*UEC headers vary based on packet-spraying and selective-retransmit metadata requirements.
VI. The Overhead Encyclopedia
The 12-byte core of an RDMA packet containing OpCode and PSN.
The actual application-level data rate, excluding all protocol overhead.
Invariant CRC. Ensures end-to-end data integrity in RDMA, separate from Ethernet's L2 FCS.
The mandatory 12-byte idle time between consecutive Ethernet frames on a wire.
A NIC technique to group small packet notifications into a single CPU interrupt to reduce overhead.
An Ethernet frame with a payload larger than 1500 bytes, typically 9000 bytes in AI fabrics.
A hardware feature where the NIC splits large data buffers into smaller packets, reducing CPU involvement.
The largest TLP allowed on a PCIe bus, crucial for header alignment forensics.
The maximum size of a packet that can be transmitted across a network link.
The L2 mechanism used in lossless Ethernet to prevent buffer overflow by pausing specific traffic classes.
A 24-bit counter used to ensure ordered delivery and detect lost packets in RoCE.
The virtual port used in RDMA to establish communication between two endpoints.
Direct memory operations that bypass the remote CPU, significantly reducing latency.
The time it takes to push all bits of a packet onto the physical wire. Directly proportional to packet size.
The response time of the slowest 1% (or 0.1%) of packets, often bloated by high PPS overhead.
The fundamental unit of data transfer across a PCIe bus link.
Using the UDP Source Port field to distribute packets across multiple paths via ECMP.
The amount of data a sender can transmit before requiring an acknowledgment.
The maximum theoretical bandwidth of a physical link (e.g., 800Gbps).
A data transfer technique where data is moved from application memory to the NIC without intermediate buffering.
Optimization Checklist: 800G Efficiency
Enable **Jumbo Frames (9216)** end-to-end on all switches (Access, Aggregation, Core).
Configure **IPv4 Header Suppression** where possible to reclaim 20B on internal fabrics.
Use **XCM (Extended Connect Metadata)** for RDMA-WRITE operations to minimize control packet overhead.
Enable **Adaptive Routing** at L3 to ensure different flows utilize all available "Goodput" across spines.
Monitor **BTH Jitter** via DPU telemetry to catch "In-Cast" congestion before it triggers flow control.
Verify **PCIe Payload Alignment** matches your MTU to avoid split-TLP performance degradation.
Protocol FAQ
Does IPv6 increase the overhead significantly?
Yes. IPv6 headers are 40B compared to IPv4's 20B. In high-efficiency GPU fabrics, IPv4 is still the standard "Internal" protocol precisely to save those 20 bytes per packet.
Why does RoCE use UDP instead of raw Ethernet?
UDP headers include a "Source Port" that changes per flow. Switches use this port to distribute traffic across multiple paths (ECMP). Without the UDP layer, RoCE would be stuck on a single physical link.
Is there a 'RoCE v3' coming soon?
The industry is moving toward the **Ultra Ethernet Consortium (UEC)** standard, which acts as a spiritual successor. UEC aim to reduce header overhead while providing better congestion control than original RoCE v2.
What is 'ICRC' and why does it cost 4B?
The Invariant Cyclic Redundancy Check (ICRC) ensures end-to-end data integrity over the RDMA layer, even if intermediate switches modify the IP or UDP headers (TTL, etc). It is mandatory for data correctness.
